乾電池で動く! ハンディタイプの小型機器向き
高トルク、3V小型モータ新登場!
マイクロギヤードモータおよびマイクロギヤーポンプを新開発
2012年01月25日
セイコークロック株式会社
セイコークロック株式会社(本社:東京都江東区 代表取締役:久良木博史)は様々な精密機器等に応用できる小型軽量高効率のマイクロギヤードモータとその応用製品としてマイクロギヤーポンプを開発し、2012年2月よりサンプル出荷をいたします。
この度、セイコークロック株式会社が開発した超小型(φ6mm x 20mm) のギヤードモータは時計の精密加工技術と省エネ技術を活用しており、環境対応のための精密機器、産業用機器等の小型化、軽量化ニーズへの対応を可能としております。
また同時開発しましたマイクロギヤーポンプは3V駆動(0.15W)時において毎分流量15mlの世界最高クラスの省エネ駆動を実現しました。
セイコークロック株式会社は今後とも当社の技術とノウハウを活かしたマイクロギヤードモータのシリーズ化とその応用製品の開発を進めてまいります。
主な特徴: | (A) | マイクロギヤードモータ 80800 サイズ:φ6mm x 20mm 、重量:1.7g、定格トルク:6mNm (駆動電圧:3V)、 駆動電流:40mA (無負荷時) |
(B) | マイクロギヤーポンプ 80900 サイズ:φ17mm x 32mm、重量:3.0g,最大流量:15ml/分(3V、0.15W) |
|
主な用途: | (A) | マイクロギヤードモータ 80800 ロボット、産業機器、カメラの駆動部、介護機器、計測器等 |
(B) | マイクロギヤーポンプ 80900 ディスペンサー、油圧機器、燃料電池、CPUクーラー等 |
|
サンプル価格 | (A) | マイクロギヤードモータ 80800:5,000円/税抜き |
(B) | マイクロギヤーポンプ 80900:8,000円/税抜き | |
販売数量 | 10万個/初年度 (両モデル合計) |
この件に関するお問い合わせ先
Dry cell battery- operated !!
High torque 3V DC micro gear motor and micro gear pump can turn many equipments into portable size.
SEIKO Clock Inc.
SEIKO Clock Inc. (Koto-ku,Tokyo; President:Hiroshi Kuraki) introduces a high efficient 3V DC micro gear motor 80800 and a micro pump 80900 featuring the gear motor 80800.
SEIKO Clock Inc. made the best use of its developing know-how of time piece products and energy conservation technology for the high efficient micro gear motor 80800 (φ6mm x 20mm) . As this gear motor is powered by dry cell batteries, a variety of equipments/products can be downsized into handy/portable size by applying it.
The gear pump 80900, simultaneously developed, achieves the highest efficiency level in this class ; pump max.flow 15ml per min. at 3V (0.15W).
SEIKO Clock Inc. attempts to continue the development of gear motors and new applications by utilizing its technology and know-how in the future.
Specification: | (A) | Micro gear motor 80800 Size: φ6mm x 20mm, Weight: 1.7g Typical torque: 6mNm (Operation voltage: 3V) Operation Electric current: 40mA |
(B) | Micro gear pump 80900 Size: φ17mm x 32mm, Weight: 3.0g Max flow: 15ml/min at 3V, 0.15W) |
|
Applications: | (A) | Micro gear motor 80800 Robot, Manufacturing equipment, Actuator for camera lens, Nursing care product, Meter, etc |
(B) | Micro gear pump 80900 Adhesive / Glue / other liquid dispenser, Water pump, Hydraulic equipment, Fuel cell, CPU cooler, etc |
|
Unit price of sample | (A) | Micro gear motor 80800: JPN YEN 5,000/piece (w/o tax) |
(B) | Micro gear pump 80900: JPN YEN 8,000/piece(w/o tax) | |
Sales quantity : | 100,000pcs per year for the both model total |
Contact window
代表特性 (Typical Specification)
(1) 80800 マイクロギヤードモータ Micro gear motor
定格使用電圧 (Nominal voltage) | 3Volt |
定格出力トルク(Nominal output Torque) | 6mNm at3Volt |
無負荷回転数 (No-load speed) | 180rpm |
無負荷電流 (No-load current) | 40mA |
ハウジング材質 (Housing material) | Engineering plastic |
使用温度範囲 (Operating temperature range) | -10~+50 ℃ |
質量(Weight) | Approx.1.7g |
モータ種類 (Motor) | DC Coreless |

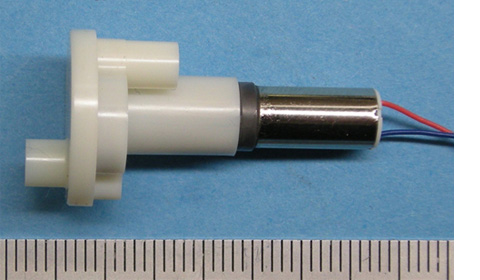

(2) 80900 マイクロギヤーポンプ Micro gear pump
定格使用電圧 (Nominal voltage) | 3Volt |
チューブ径 (Tube diameter) | φ3.2+0.05, -0 |
最大流量 (Max flow) | 15ml/min in case of water |
最大圧力 (Max. Pressure) | 40kPa |
定格電流 (Nominal Current) | 50mA |
ポンプ部ハウジング材質 (Housing material of pump) | Engineering plastic |
使用温度範囲 (Operating temperature range) | -10~+50 ℃ |
質量 (Weight) | Approx.3.0g |
